Airport Aviation Equipment Aircraft Catering Truck | |

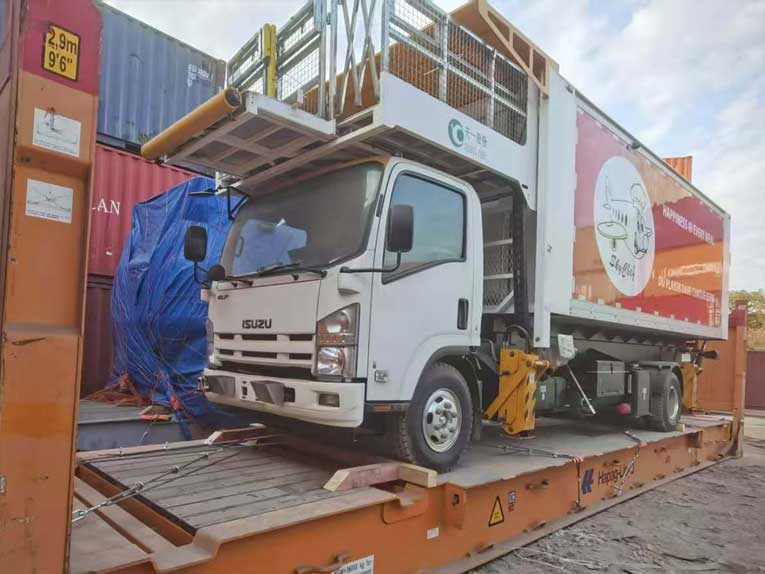

Airport Aviation Equipment Aircraft Catering Truck working platform ① The working platform is divided into three parts: fixed platform, left and right mobile platform and telescoping platform. ② The length of the fixed platform is available in multiple configurations, and customers can confirm it according to their own requirements. The standard platform's external dimensions are as follows: Fixed platform (length × width, mm) 1150×1800, bearing capacity 600kg. Left and right moving platform (length × width, mm) 730×1000, load capacity 300kg, stroke 0-300mm. The front and rear telescopic platform (length × width, mm) is 500×878, with a load capacity of 150kg and a stroke range of 0 to 500mm. ③ There are more than two spotlights with a power greater than 55W on the work platform, which are installed on both sides of the front end of the carriage. ④ Circular anti-collision rubber cylinders are provided at the end of the front and rear telescopic platforms close to the aircraft. ⑤ Rotating guardrails are provided on the left and right moving platforms. ⑥ On the rotating guardrail, there are front and rear telescopic guardrails, and D-shaped yellow anti-collision rubber hoses are installed on the telescopic guardrails. The left and right movement and forward and backward extension of the platform are standard-equipped with hydraulic cylinders, and an electric push rod type is also available as an option. ⑧ The platform is paved with aluminum alloy patterned plates ⑨ The platform is equipped with no-leaning and platform load-bearing indication signs. According to customer requirements, stainless steel protective nets can be installed on the platform guardrails. The locking device of the platform side door adopts a self-locking structure, which is safe and reliable. The locking of the side door can be optionally equipped with spring pin type and manual pin type. Technical parameters of Airport Aviation Equipment Aircraft Catering Truck Chassis model: QL1070A5KAY Engine model: 4KH1CN5HS Platform working height mm: 2400 ~ 4600 Box body rated load ㎏ : 1500 Platform left and right adjustment range mm: 0 ~ 300 Platform expansion adjustment range mm: 0 ~ 500 Fixed platform dimensions (length × width) mm: 1150×1800 Mobile platform size (length × width) mm: 730×1000 Body dimensions (length × width × height) mm: 5000×2010×2180 Fixed platform rated load: 600 Rated load of mobile platform: 450 Overall dimensions (length × width × height) mm: 7160×2010×3300 Curb weight in kilograms: 7200 Minimum ground clearance mm: 195 Minimum turning diameter m: 16.5 Rise and fall time of box body S: 40/25 Foot support contraction time S: 14 Platform extension and retraction time S: 8/6 Allowable operating wind speed J: 8 Maximum speed (km/h) : 65 Approaching aircraft speed km/h: ≤5 Hydraulic tank capacity L: 110 Fuel tank capacity L: 120 Maximum working pressure Mpa: 15 Jiangsu Tianyi Aviation Industry Co., Ltd. Factory: No.2 Hang Kong Road High-tech zone, Jianhu county, Yancheng City, Jiangsu Province, P.R.China Shanghai Office: Room 1103, Building 35, No. 1399 Jiasong Middle Road, Qingpu District, Shanghai, China Tel: +86 21 50496068 / +86 21 50496058 / +86 400 9980 919 Mobile: +86 137 -6133 -5725 (As WeChat) +86-134 -7248 -8657 +86-195 -1651 -9903 +86-137 -7424 -8052 E_ mail: joinsun@jstianyi.com.cn airport.gse@jstianyi.com.cn Website: www.tianyi-gse.com  | |
